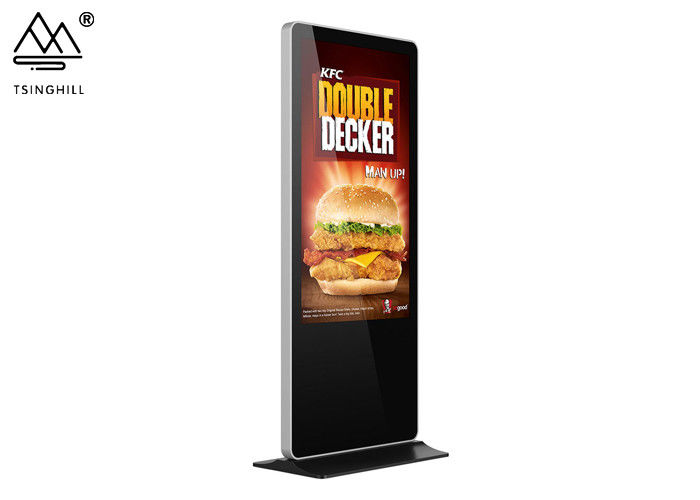

3840x2160 Floor Standing Interactive Kiosk 43 Inch LCD Panel

Basic Information
Place of Origin: China
Brand Name: TSINGHILL
Certification: CE ROHS FCC CCC ISO9001 CNAS
Model Number: TA43
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Honeycomb Box
Delivery Time: 5-30 days
Payment Terms: T/T, Western Union
Supply Ability: 100,000 Units per Month
Panel Size: 43 Inch Exterior Size: 1810*592*50mm
Display Size: 942.2mm(H)*530.4mm(V) Operating System: Windows 7/Windows 10/Android
LCD Type: Original UHD IPS LCD With Grade A+ Tempered Glass: Anti-glare
Resolution: 3840x2160 4K FHD Touch Type: 20 Point Infrared Touch (Capacitive Optional)
Aspect Ratio: 16:9 Support Color: 16.7M
Pixel Pitch: 0.4845*0.4845mm Contrast Ratio: 3000:1
Viewing Angle: 178° Response Time: < 6ms
Lifetime: 60000 Hours Panel Bit (8 Or 10): 10 Bits, 16.7M
High Light:

Interactive Kiosk 43 Inch LCD Panel

,

1920x1080px Floor Standing Interactive Kiosk

,

1920x1080px Kiosk 43 Inch LCD Panel

Shopping Mall 43 Inch LCD Panel Advertising Touch Screen Digital Signage Kiosk



Product Specifications:

Model Model No.: TA43
Type 43 Inch Advertising Player
Operating System Info. Android OS Optional 1(High-end) Optional 2(Middle-end) Optional 3(Low-end)
Android 6.0 Android 4.4 Android 4.2
CPU RK3288 Allwinner A83T Allwinner A20
RAM 2GB 1GB 512MB
Memory 16GB 16GB 8GB
Touch function
(Optional)
Touch Technology Infrared touch N/A N/A
Touch points 10 points
Input way finger touch,or any opaque object
Touch life times Over 60,000,000 times
Touch response speed 6~8ms
Display Panel Info. Display Type LED
Display Colors 1.07 Billion colors
Resolution 3840*2160 UHD
Ratio of display 16:9
Wide Viewing Angle 178°
Tempered glass Glass thicknesse 4mm tempered glass
Glass transmittance 95%
Interface
Info.
DC input x1,(12V; 3.0A)
HDMI INPUT x1
RJ45 x1
Earphone x1,3.5mm
USB OTG x1
USB HOST x1
TF Card x1,(Max. support extend : 64GB(High-end), 32GB(Middle-end&Low-end))
Other Info. Input Power ?
Working hours 7x24
Working voltage 50-60HZ 100-250V
Working temperature -20℃~60℃
Storage temperature -30℃~70℃
Working humidity environment 80%
Power of speaker 8Ω 12.5W*2
Frame material Alloy
Accessories Remote control x1
Key x1
Antenna x1(Standard comes with High-end and Middle-end model)
User Manual x1


Product Parameters:



Large screen, 4K ultra HD, high contrast, high saturation, high resolution, take the place of traditional projection display, presenting an unprecedented visual spectacle.



High precision writing screen, extremely fine writing is still no hindered, intelligent one-click writing, erase, color, amplification, shrink, comparable to paper writing experience.



High-precision writing screen, very fine writing is still unobstructed, intelligent one-key writing, erasing, changing color, zooming in, zooming out, comparable to the paper writing experience , high-precision touch, touch experience is smoother.



Realize synchronization of the display with the device connected. Using mobile phones, tablets, and laptops to cast the screen to the all-in-one computer, conference speakers can move interactively to explain the content remotely.



Large and small screen synchronization, screen projection interaction, using mobile phones, tablets, and laptops to project the screen to the all-in-one computer, conference speakers can move interactively to explain the content remotely , and the two-way sidebar setting menu is as convenient and fast as a smartphone.



12mm ultra-narrow frame, with Bluetooth connection function, built-in 6-channel theater-level surround sound, 8 million camera, 4-way pickup.



Android 7.1/8.1/9.1 operating system, built-in ARM Cortex A53 quad-core CPU main chip and GPU IMG GE 7800, running memory 3G, built-in storage 32G.



Product Applications:

3840x2160 Floor Standing Interactive Kiosk 43 Inch LCD Panel 03840x2160 Floor Standing Interactive Kiosk 43 Inch LCD Panel 1



FAQ:



Q: What's your guarantee for the products?

A: All our products have one-year guarantee from the shipping date.

And it is OK to upgrade to two or three years guarantee with additional cost.



Q: What kinds of payment methods does your company accept?

A: Most of payment methods are accepted here, such as T/T, Western Union, Credit Card, etc.



Q: Do you accept door to door shipping service?

A: Yes, we do. Also we have favourable price by DHL/FEDEX/UPS/TNT/ARAMEX, etc.



Q: Are you a factory or trading company ? What is the MOQ of touch screen?

A: Yes, we are factory direct sales and have some items in stock , you can order 1pc for test.



Q: What is the delivery time? Where do you ship of touch screen?

A: Generally speaking , the goods can be delivered within 5-7 days for small orders, and the production time about 15 days for more than 10pcs. In addition, our factory is located in Foshan, Guangdong. If you have forwarder in Shenzhen or Guangzhou, we can help to ship goods to your forwarder .



Q: Could you provide OEM&ODM service of touch screen?

A: Of course , including software, packaging, product logo, etc.,consult customer service for more details.



Q: What is the warranty period of touch screen?

A: Normally it is 1 year, we have a professional after-sales service team, specific details can consult customer service.
