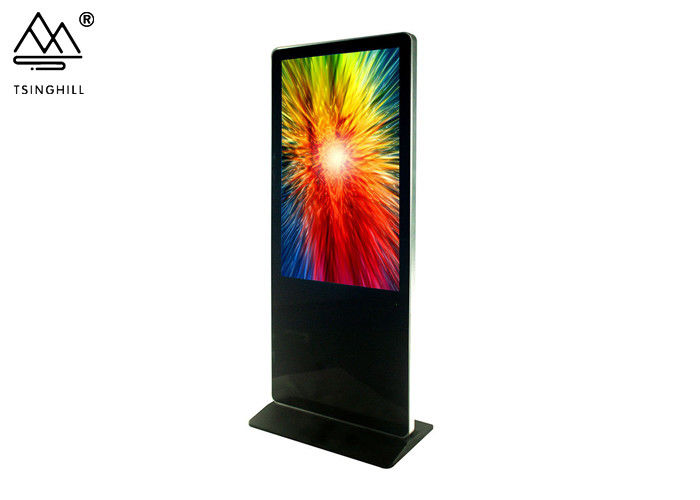

49 Inch Indoor Floor Standing Interactive Kiosk Vertical LCD Advertising Panels
Product Specifications:
| Model |
Model No.: |
TA49 |
| Type |
49 Inch Advertising Player |
| Operating System Info. |
Android OS |
Optional 1(High-end) |
Optional 2(Middle-end) |
Optional 3(Low-end) |
| Android 6.0 |
Android 4.4 |
Android 4.2 |
| CPU |
RK3288 |
Allwinner A83T |
Allwinner A20 |
| RAM |
2GB |
1GB |
512MB |
| Memory |
16GB |
16GB |
8GB |
Touch function
(Optional) |
Touch Technology |
Infrared touch |
N/A |
N/A |
| Touch points |
10 points |
| Input way |
finger touch,or any opaque object |
| Touch life times |
Over 60,000,000 times |
| Touch response speed |
6~8ms |
| Display Panel Info. |
Display Type |
LED |
| Display Colors |
1.07 Billion colors |
| Resolution |
3840*2160 UHD |
| Ratio of display |
16:9 |
| Wide Viewing Angle |
178° |
| Tempered glass |
Glass thicknesse |
4mm tempered glass |
| Glass transmittance |
95% |
Interface
Info. |
DC input |
x1,(12V; 3.0A) |
| HDMI INPUT |
x1 |
| RJ45 |
x1 |
| Earphone |
x1,3.5mm |
| USB OTG |
x1 |
| USB HOST |
x1 |
| TF Card |
x1,(Max. support extend : 64GB(High-end), 32GB(Middle-end&Low-end)) |
| Other Info. |
Input Power |
? |
| Working hours |
7x24 |
| Working voltage |
50-60HZ 100-250V |
| Working temperature |
-20℃~60℃ |
| Storage temperature |
-30℃~70℃ |
| Working humidity environment |
80% |
| Power of speaker |
8Ω 12.5W*2 |
| Frame material |
Alloy |
| Accessories |
Remote control |
x1 |
| Key |
x1 |
| Antenna |
x1(Standard comes with High-end and Middle-end model) |
| User Manual |
x1 |
About TSINGHILL
Guangdong TSINGHILL Technology Co., Ltd has been established since 2016. We are a high-tech enterprise specializing in the development, production and world distribution of special digital displays. We can customize and supply from 55 to 110 inches displays and we are always focusing on our customers’ requirements and needs. Our multi language speaking international sales team lead by our Canadian VP makes us one of the easiest Chinese companies in our field to deal with. Our years of success stories in our overseas projects has proven us to be leading our market. We TSINGHILL understand the importance of being efficient in communicating with our customers, the importance for the customer to sense that we understand their questions and concerns. Give us a try, write to us, ask your questions and see how our staff will be able to make you feel secure and worry-free.
TSINGHILL’s products have been widely used in a variety of areas such as security monitoring, stock exchanges, traffic control centers, airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc. Providing cost-effective products and customer-oriented services, TSINGHILL has become the ODM/OEM partners of a number of world-class companies. LCD Series products have been exported to Russia, the United States, Italy, Israel, Australia, South Korea, Africa, Southeast Asia, the Middle East and other regions.
Our company has been awarded the ISO9001 quality management system certificate, and the products series are certified to CE, FCC, RoHS and UL certificate. In 2019, "TSINGHILL" was awarded "the most competitive brand". Any inquires are warmly welcomed!
Product Details:
FAQ:
Q:Can you provide OEM service for the all in one interactive flat panel?
A: Yes,well supported.We can customize it according to your requests.
Q:Do you have stock?
A:We keep 3000-5000 units in Stock every single Month.
Q: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Foshan, Guangdong province, you are the mostly welcomed to visit our factory anytime.
Q: How is the quality of the product?
A: Our products have been strictly tested high quality by QC before shipping to customers.And we do own brand selling in domestic
China market on line. Our brand is “TSINGHILL. So quality is the most important thing for us!
Q: Does the product only use for school?
A: Our products are widely used in hospital, school, office etc.
Q: How can I trust your product quality?
A: We have more than 10 years export experience. From material purchasing to product delivery, we have professional staff and
procedures to prevent potential quality risk. Our products have been approved by CE & ROHS, etc.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
