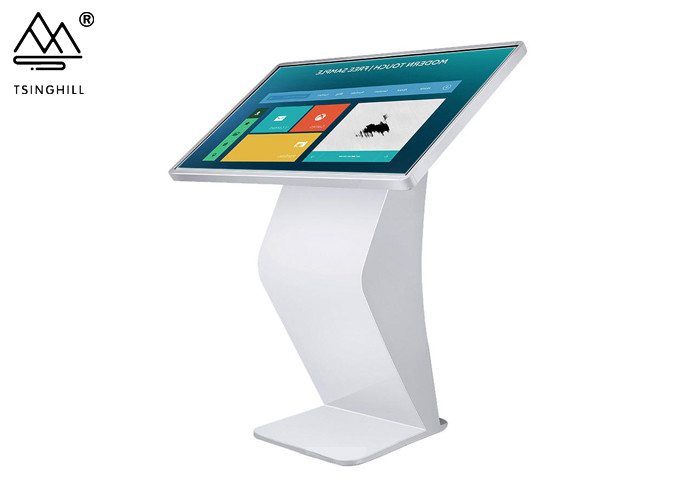

Customer Service Kiosk Touch Screen Interactive 43 Inch Signage

Basic Information
Place of Origin: China
Brand Name: TSINGHILL
Certification: CE ROHS FCC CCC ISO9001 CNAS
Model Number: TQ43
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Honeycomb Box
Delivery Time: 5-30 days
Payment Terms: T/T, Western Union
Supply Ability: 100,000 Units per Month
Panel Size: 43 Inch Panel Demensions: 1003*592*60mm
Display Size: 928.2*521.3mm Operating System: Windows 7/Windows 10/Android
LCD Type: Original UHD IPS LCD With Grade A+ Tempered Glass: Anti-glare
Resolution: 1366x768 Touch Type: 20 Point Infrared Touch (Capacitive Optional)
Aspect Ratio: 16:9 Support Color: 16.7M
Pixel Pitch: 0.4845*0.4845mm Contrast Ratio: 1500:1
Viewing Angle: 178° Response Time: < 6ms
Lifetime: 60000 Hours Panel Bit (8 Or 10): 10 Bits, 16.7M
Height: 1142mm N.W.: 41kg
High Light:

Customer Service Kiosk Touch Screen

,

Kiosk Touch Screen Interactive Signage

,

Interactive Signage 43inches

Self-Service 43 Inch Horizontal Touch Screen Kiosk Information Inquiry Machine



Product Specifications:

Specifications
Model No. TQ43
Panel size 43“ TFT-LCD
Maximum resolution 1366x768
Display color 16.7M
Pixel Pitch(mm) 0.511(H)×0.511(V)
Brightness (nits) 500cd/m2
Contrast 1500:1
Visual angle 178°/178°
Response time 8ms
Horizontal frequency 50-70KHZ
Vertical frequency 56-75KHZ
Life(hrs) >60,000(hrs)
Touch Panel
Specification Infrared touch screen
Positioning
accuracy
±2mms
Transmittance ≥92%
Hardness 7H
Click manner double point, multipoint(optional)
Response time <=10ms
Output Resolution 4096X4096
Life time Single point of more than 60 million
Input and output
Composite video input 3(BNC×3)
YUV Input 1 (BNC×3)
S-video 1(BNC X2)
D-15 pin RGB input 1
HD 1
Composite video output 2(BNC×2)
L/R Audio input 1 (RCAx2)
L/R Audio output 1 (RCAx2)
USB2.0/Serial/SP2 input 2(for touch screen use)
Video
Color system PAL/NTSC/SECAM
Compatible HD input/DVI 480P,576P,720P,1080I,1080P
3D Comb filter Yes
Video reduction noise Yes
OSD display( screen menu display)
Menu language Chinese/English( multiple language option required)
Computer
Main chipset Intel G41+ICH7
Main board ONDA G41
System bus frequency 800/1066/1333 MHz
Graphics card Integrated IntelGMX 4500
Audio card Integrated AC97
Network card Integrated 10/100/1000M adaptive
Memory 2G DDRIII (max 4G)
Hard Disk 320G SATA
Operation system Windows 7
Power
Power supply AC100V~240V,50/60Hz
Maximum power consumption <=55W
Standby power consumption <=1W
Temperature
Working temperature 0°C~50°C
Storage temperature -10°C~60°C
Working humidity 20%~80%
Storage humidity 5%~95%
Appearance
Panel color/appearance White, black, customized
Panel material SPCC/Aluminum/Customized
Installation Wall-mounted(default), desktop
Certificate CE/FCC/3C/RoHS
Accessories Manual,remote control, data line1.5 M, power line 1.8 M



Product Parameters:



Infrared Multi 10 Point Touch Screen

(Original A+ Panel: Samsung/ LG/ AUO/ ChiMei)

Built-in HIFI Speakers

Built-in Bluetooth,WIFI, RJ45 Network

Operating System: Android/ Windows

Features: Tempered Glass/ Aluminium Alloy Frame

System: Linux/ Android/ Windows (Optional)

Support 16/7 Operation/ Auto Display

Supports Media Publishing System

FHD Resolution: 4mm anti-explosion tempered glass.

The whole perspective of 178°(Min).

USB VGV HDMI Inputs/Outputs

Stand could be customized!

Applications: Supermarket/ Retail/ Store/ Airport/ Hotel/ Showroom/ Bank/ Hospital/ Museum



Product Details:

Customer Service Kiosk Touch Screen Interactive 43 Inch Signage 0Customer Service Kiosk Touch Screen Interactive 43 Inch Signage 1

FAQ:



Q: What's your guarantee for the products?

A: All our products have one-year guarantee from the shipping date.

And it is OK to upgrade to two or three years guarantee with additional cost.



Q: What kinds of payment methods does your company accept?

A: Most of payment methods are accepted here, such as T/T, Western Union, Credit Card, etc.



Q: Do you accept door to door shipping service?

A: Yes, we do. Also we have favourable price by DHL/FEDEX/UPS/TNT/ARAMEX, etc.



Q: Are you a factory or trading company ? What is the MOQ of touch screen?

A: Yes, we are factory direct sales and have some items in stock , you can order 1pc for test.



Q: What is the delivery time? Where do you ship of touch screen?

A: Generally speaking , the goods can be delivered within 5-7 days for small orders, and the production time about 15 days for more than 10pcs. In addition, our factory is located in Foshan, Guangdong. If you have forwarder in Shenzhen or Guangzhou, we can help to ship goods to your forwarder .



Q: Could you provide OEM&ODM service of touch screen?

A: Of course , including software, packaging, product logo, etc.,consult customer service for more details.



Q: What is the warranty period of touch screen?

A: Normally it is 1 year, we have a professional after-sales service team, specific details can consult customer service.
