|Place of Origin:||China|
|Certification:||CE ROHS FCC CCC ISO9001 CNAS|
|Minimum Order Quantity:||1 Unit|
|Packaging Details:||Honeycomb Box|
|Delivery Time:||5-30 days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||100,000 Units per Month|
|Panel Size:||49 Inch||Panel Demensions:||1147*674*75mm|
|Display Size:||1071.8*602mm||Operating System:||Windows 7/Windows 10/Android|
|LCD Type:||Original UHD IPS LCD With Grade A+||Tempered Glass:||Anti-glare|
|Resolution:||1366x768||Touch Type:||20 Point Infrared Touch (Capacitive Optional)|
|Aspect Ratio:||16:9||Support Color:||16.7M|
|Pixel Pitch:||0.4845*0.4845mm||Contrast Ratio:||1500:1|
|Viewing Angle:||178°||Response Time:||< 6ms|
|Lifetime:||60000 Hours||Panel Bit (8 Or 10):||10 Bits, 16.7M|
49" TFT Horizontal Touch Screen Kiosk,
49in Digital Information Kiosk,
Horizontal Touch Screen Kiosk 49in

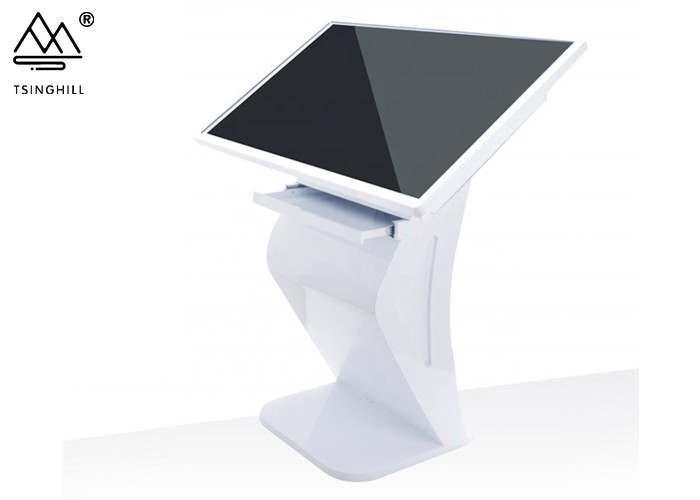

49 Inch Horizontal Touch Screen Kiosk Wifi Information Query Machine
|Panel size||49“ TFT-LCD|
|Specification||Infrared touch screen|
|Click manner||double point, multipoint(optional)|
|Life time||Single point of more than 60 million|
|Input and output|
|Composite video input||3(BNC×3)|
|YUV Input||1 (BNC×3)|
|D-15 pin RGB input||1|
|Composite video output||2(BNC×2)|
|L/R Audio input||1 (RCAx2)|
|L/R Audio output||1 (RCAx2)|
|USB2.0/Serial/SP2 input||2(for touch screen use)|
|Compatible HD input/DVI||480P,576P,720P,1080I,1080P|
|3D Comb filter||Yes|
|Video reduction noise||Yes|
|OSD display( screen menu display)|
|Menu language||Chinese/English( multiple language option required)|
|Main chipset||Intel G41+ICH7|
|Main board||ONDA G41|
|System bus frequency||800/1066/1333 MHz|
|Graphics card||Integrated IntelGMX 4500|
|Audio card||Integrated AC97|
|Network card||Integrated 10/100/1000M adaptive|
|Memory||2G DDRIII (max 4G)|
|Hard Disk||320G SATA|
|Operation system||Windows 7|
|Maximum power consumption||<=55W|
|Standby power consumption||<=1W|
|Panel color/appearance||White, black, customized|
|Accessories||Manual,remote control, data line1.5 M, power line 1.8 M|
Guangdong TSINGHILL Technology Co., Ltd has been established since 2016. We are a high-tech enterprise specializing in the development, production and world distribution of special digital displays. We can customize and supply from 55 to 110 inches displays and we are always focusing on our customers’ requirements and needs. Our multi language speaking international sales team lead by our Canadian VP makes us one of the easiest Chinese companies in our field to deal with. Our years of success stories in our overseas projects has proven us to be leading our market. We TSINGHILL understand the importance of being efficient in communicating with our customers, the importance for the customer to sense that we understand their questions and concerns. Give us a try, write to us, ask your questions and see how our staff will be able to make you feel secure and worry-free.
TSINGHILL’s products have been widely used in a variety of areas such as security monitoring, stock exchanges, traffic control centers, airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc. Providing cost-effective products and customer-oriented services, TSINGHILL has become the ODM/OEM partners of a number of world-class companies. LCD Series products have been exported to Russia, the United States, Italy, Israel, Australia, South Korea, Africa, Southeast Asia, the Middle East and other regions.
Our company has been awarded the ISO9001 quality management system certificate, and the products series are certified to CE, FCC, RoHS and UL certificate. In 2019, "TSINGHILL" was awarded "the most competitive brand". Any inquires are warmly welcomed!
Intelligent Split Screen Multi-purpose
Video and pictures can be played simultaneously, logo, whether, time, date and scrolling subtitles can also appear at the same time. Massive split screen modules can be applied, or you can design your own split screen modules to meet the needs of multi-task.
Built-in WIFI Receiver
Built-in wireless WIFI module, enjoy network experience download function, make data interaction more convenient, multi-person interaction with the same screen competitive game entertainment.
Cloud Intelligent Information Release
The use of cloud intelligent information release system, remote management advertising machine. Multi-terminal login, cloud management, real-time monitoring, synchronous update and release , materials.
Energy Conservation And Environmental Protection
Super long standby, support 7*24 hours uninterrupted work, integration without physical loss, overall heat dissipation to play to the best, energy saving and low power consumption.
4K Ultra HD Screen
The use of bright color full HD screen, restore the natural delicate image.
Horizontal design, in line with human reading and writing posture, easy to touch view. Adopt energy saving and environmental protection material
Dual System Selection
Android/Windows dual system free to choose, compatible with a variety of query software, support massive download.
Select Core Processors
Faster response, easier to run more tasks, give you a flying smooth experience.
