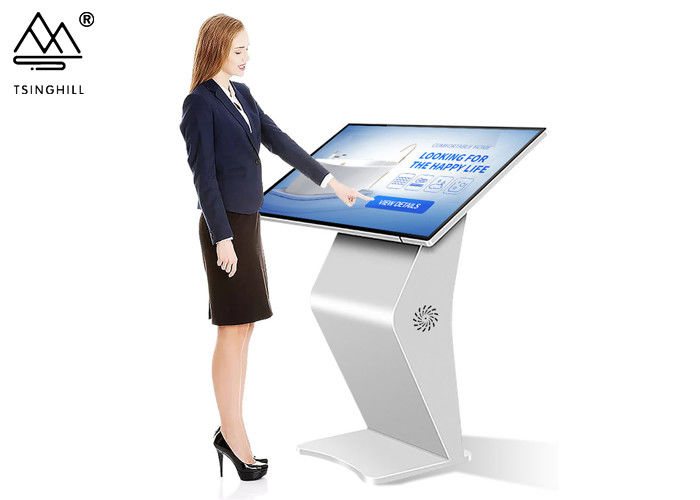

49 Inch Floor Standing Bill Payment Kiosk With Touch Screen For Restaurant
Product Specifications:
| Specifications |
| Model No. |
TQ49 |
| Panel size |
49“ TFT-LCD |
| Maximum resolution |
1366x768 |
| Display color |
16.7M |
| Pixel Pitch(mm) |
0.511(H)×0.511(V) |
| Brightness (nits) |
500cd/m2 |
| Contrast |
1500:1 |
| Visual angle |
178°/178° |
| Response time |
8ms |
| Horizontal frequency |
50-70KHZ |
| Vertical frequency |
56-75KHZ |
| Life(hrs) |
>60,000(hrs) |
| Touch Panel |
| Specification |
Infrared touch screen |
Positioning
accuracy |
±2mms |
| Transmittance |
≥92% |
| Hardness |
7H |
| Click manner |
double point, multipoint(optional) |
| Response time |
<=10ms |
| Output Resolution |
4096X4096 |
| Life time |
Single point of more than 60 million |
| Input and output |
| Composite video input |
3(BNC×3) |
| YUV Input |
1 (BNC×3) |
| S-video |
1(BNC X2) |
| D-15 pin RGB input |
1 |
| HD |
1 |
| Composite video output |
2(BNC×2) |
| L/R Audio input |
1 (RCAx2) |
| L/R Audio output |
1 (RCAx2) |
| USB2.0/Serial/SP2 input |
2(for touch screen use) |
| Video |
| Color system |
PAL/NTSC/SECAM |
| Compatible HD input/DVI |
480P,576P,720P,1080I,1080P |
| 3D Comb filter |
Yes |
| Video reduction noise |
Yes |
| OSD display( screen menu display) |
| Menu language |
Chinese/English( multiple language option required) |
| Computer |
| Main chipset |
Intel G41+ICH7 |
| Main board |
ONDA G41 |
| System bus frequency |
800/1066/1333 MHz |
| Graphics card |
Integrated IntelGMX 4500 |
| Audio card |
Integrated AC97 |
| Network card |
Integrated 10/100/1000M adaptive |
| Memory |
2G DDRIII (max 4G) |
| Hard Disk |
320G SATA |
| Operation system |
Windows 7 |
| Power |
| Power supply |
AC100V~240V,50/60Hz |
| Maximum power consumption |
<=55W |
| Standby power consumption |
<=1W |
| Temperature |
| Working temperature |
0°C~50°C |
| Storage temperature |
-10°C~60°C |
| Working humidity |
20%~80% |
| Storage humidity |
5%~95% |
| Appearance |
| Panel color/appearance |
White, black, customized |
| Panel material |
SPCC/Aluminum/Customized |
| Installation |
Wall-mounted(default), desktop |
| Certificate |
CE/FCC/3C/RoHS |
| Accessories |
Manual,remote control, data line1.5 M, power line 1.8 M |
Product Parameters:
There are two front USB channels, one of which is dual-channel recognition, the front smart pen adsorption card slot, no screw instant adsorption, easy to operate.
One-click call whiteboard software 2048 original handwriting book, one-click call PPT (page up and down, full annotation, office save the original ecology).
One-key call whiteboard software 2048 level original handwriting, one-key call PPT (up and down the page, the whole annotation, save the original ecology of Office).
Multi-functional intelligent stylus 4 flying mouse (magnifying glass, empty mouse, spotlight, laser pen).
Multifunctional smart stylus 4 big flying squirrels (magnifying glass, air mouse, spotlight, laser pointer).
Supports 1-channel 4K-60FPS decoding or up to 4-channel high-definition simultaneous decoding, supports 1-channel USB3.0, 2-channel USB2.0 expansion interface ; supports 2-channel HDMI input signal, supports multi-screen display, and supports up to 2 input window display ( 2ch HDMI+ built-in player)
Product Details:
FAQ:
Q: Could you provide OEM&ODM service of touch screen?
A: Of course , including software, packaging, product logo, etc.,consult customer service for more details.
Q: What is the warranty period of touch screen?
A: Normally it is 1 year, we have a professional after-sales service team, specific details can consult customer service.
Q: How do you guarantee the quality of your touch screen?
A: Our products comply with ISO9001 quality system and CE/FCC/ROHS standards. All our products pass strict QC inspection in the production process. In particular, export products need to complete 72-hour aging test to ensure no problems before shipment.
Q: How do you arrange transportation for touch screen?
A: If small sample orders suggest express delivery (7-10days) or air freight (10-15 days), if bulk production advise by sea more favorable , please consult customer service for more details!
Q: What services can we provide?
A: Accepted Delivery Terms: FOB, EXW.
Accepted Payment Currency: USD, CNY.
Accepted Payment Type: T/T, West Union, Paypal.
Language Spoken:English, Chinese.
Q: How long does the sample be prepare for?
A: Usually 5-9 working days for common spec and package, customization samples should to be negotiated.
Q: How long is the warranty time?
Standard warranty :12 month, can be extended.
